Description

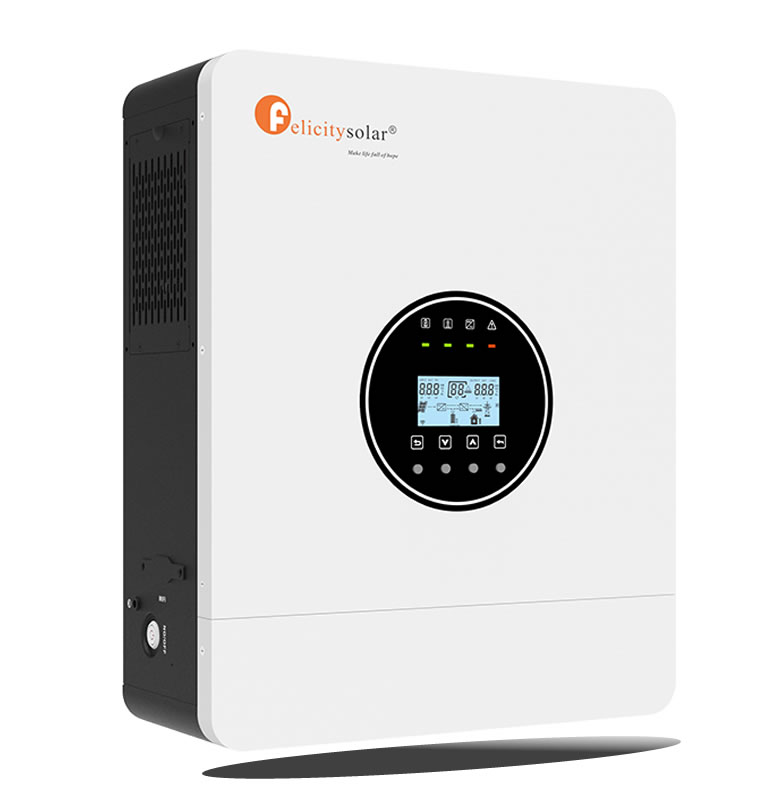

Felicity Solar Inverter 6kw
Inverter Mode:
• Rated Power: 6000VA / 6000W
• DC Input: 48VDC, 137A
• AC Output: 230VAC, 50/60Hz, 27.2A
• Max Parallel Units: Up to 12 Units
AC Charger Mode:
• AC Input: 230VAC, 50/60Hz, 40A
• DC Output: 54VDC
• Max. Charging Current: 120A (Default: 30A)
• AC Output: 230VAC, 50/60Hz, 27.2A
Solar Charger Mode:
• Rated Solar Charging Power: 7500W
• Nominal PV Voltage: 360V
• PV Voltage Range: 90V (Min) – 500V (Max)
Environmental Conditions:
• Operating Temperature: -10°C to +50°C
• Protection Class: Class I
• Ingress Protection: IP20
Important Safety Notes:
• Read the user manual before installation
• Wait at least 5 minutes after shutdown before working on the unit
• AC connection must be grounded properly
• Do not connect solar panels (PV) to ground
